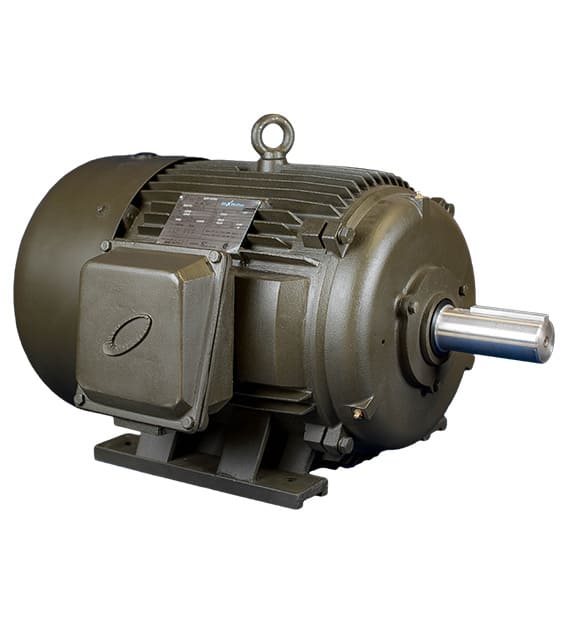

AC Motor 20HP

$1,010.00

SKU: 150006 Category: Tag:

Product Description

AC Motor 20HP COMMERCIAL MOTORS

  • Design “C”
  • Cast Iron
  • High Efficiency
  • EPACT
  • TEFC
  • Three Phase Rigid Base Motors
  • New! … T-Frame and TC-Frame AC electric motors are now available.
  • Standard, EPACT and Premium efficient ratings
  • Inverter-rated
  • Name-plated for 50 Hz operation
  • 1-year warranty on EPACT efficient motors
  • 3-year warranty on Premium efficient motors
  • Class B insulation systems, Class F 140 frame and higher
  • Shielded ball bearings for direct coupled applications
  • Rolled steel and cast iron designs
  • UL recognized and CSA certified

Applications:

For use where water and dust exposure is minimal. Ideally suited for use on pumps, compressors, blowers, fans and other standard industrial applications.

Download:

Click here to download outline diagram

Additional information

Weight 324 lbs
Dimensions 13 × 21.25 × 1 in
Horsepower

20HP

RPM

1800 RPM

Input Voltage

208V – 230V / 460V

Input Phase

3 Phase

Frame Size

256T

Enclosure

Cast Iron
