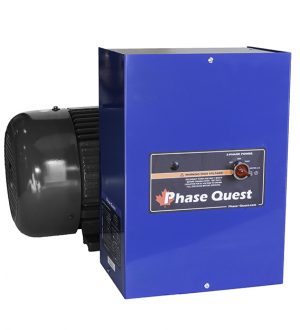

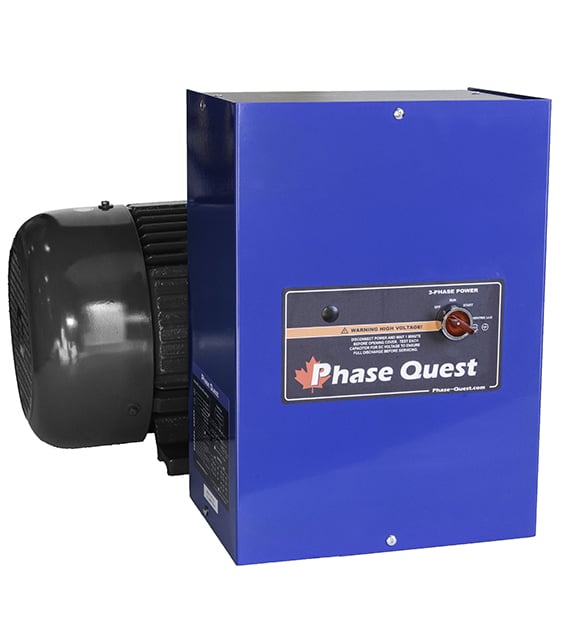

phase-quest-front-bnw

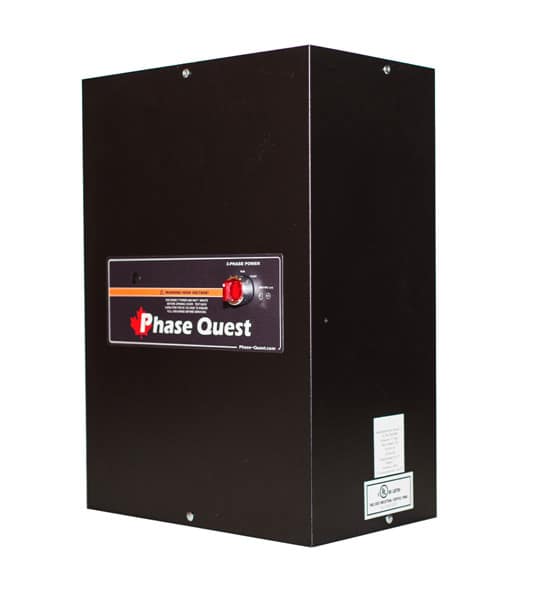

rotary-phase-converter-panelsphase-converter-labelphase-converter-panel-openphase-converter-panel-open-2phase-converter-panel-open-closeup

Rotary Phase Converter – 10 HP

$1,289.00

Product Description

Rotary Phase Converter – 10 HP

Standard Features:

  • Nema enclosures
  • Start/stop station (automatic operation optional)
  • Heavy-duty start capacitors
  • Oil filled run capacitors
  • Voltage sensing relay switch
  • Discharge resistors
  • Heavy duty magnetic contactor for controlling start capacitor circuit
  • Soft Starting design
  • Wiring diagram
  • Detailed instructions with connection diagram
  • One year warranty
  • High Efficiency Leeson Idler Motor
  • Isolation Mountings (Upgrade)

Control Panel Features:

  • Built-In Motor Starter with Start/Stop Switch
  • Digitally Controlled & Protected Start Circuit
  • Complete Phase Power Failure Protection
  • CNC Voltage Balancing
  • Power “ON” Indicator Light
  • Easy Installation
  • Distribution Block Connections
  • Power Factor Corrected

Generator Features:

  • Custom made Phase Converter Generators
  • Low Impedance/High Efficiency Design
  • Available in ODP and TEFC
  • Custom Copper Windings and Rotor
  • Corrosion Resistant Paint
  • Vacuum Pressure Impregnation for all Windings
  • Shielded Windings



Additional Information

Weight 200 lbs
Dimensions 27 x 17 x 26 in
